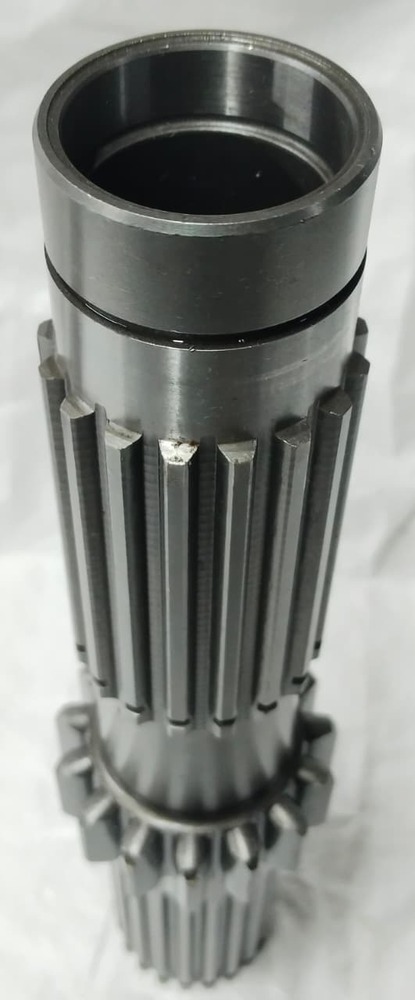

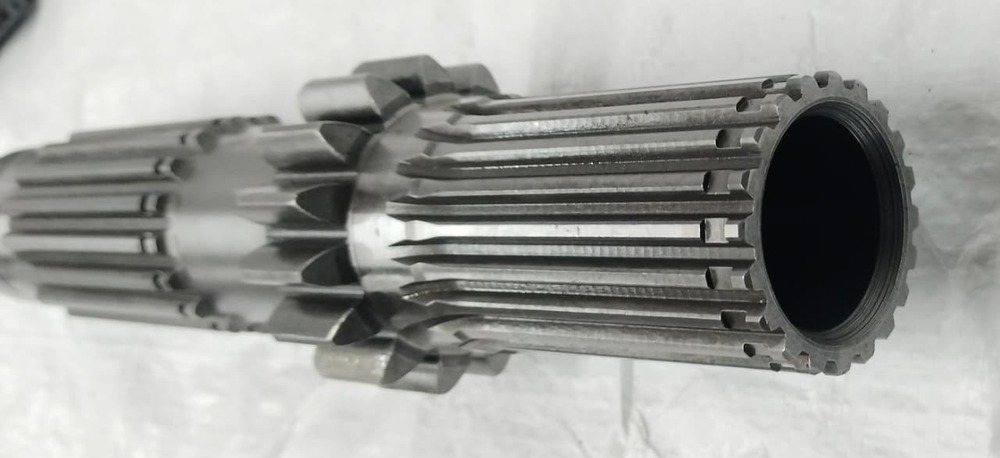

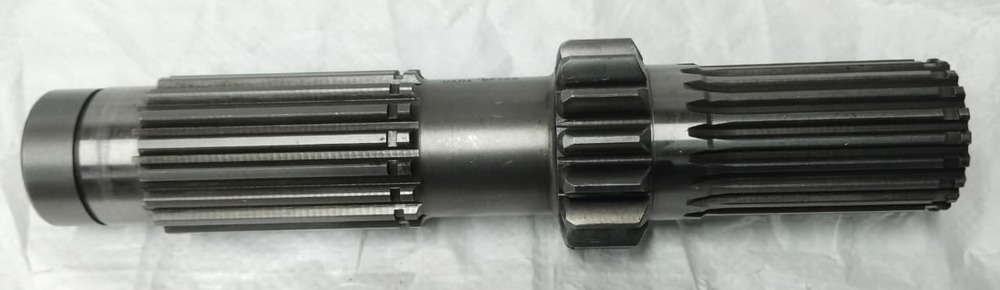

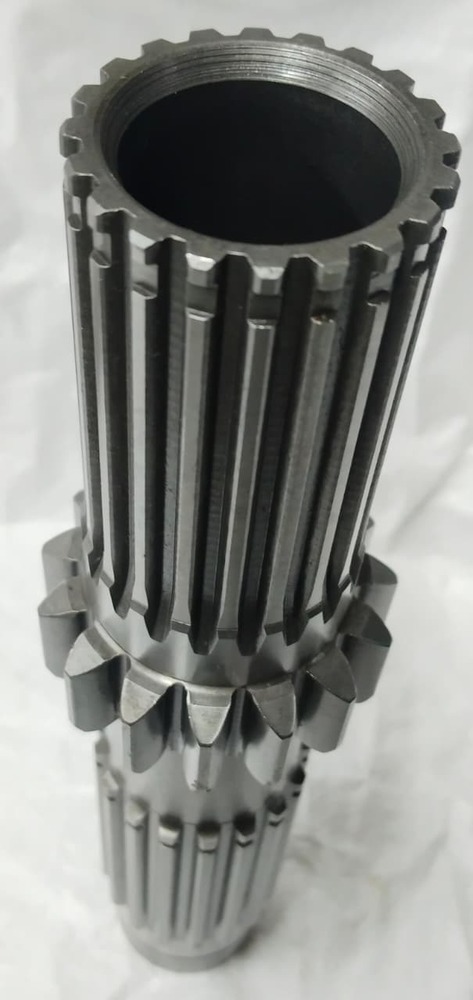

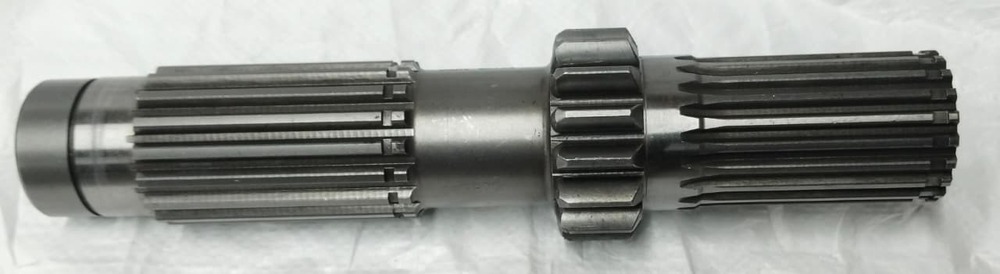

COUNTER SHAFT 0906472M03

COUNTER SHAFT 0906472M03 Specification

Model No
MF 1035,MF 1134,MF 241,MF 245,MF 2635,MF 5245,MF 5400,MF 9000,MF 9500,TAFE 30,

Lubrication Type
Grease or oil-based (as per assembly requirement)

Bearing Type
COUNTER SHAFT 0906472M03

Pressure Range
AS PER SPECIFICATION STANDAND

Use
MF 1035,MF 1134,MF 241,MF 245,MF 2635,MF 5245,MF 5400,MF 9000,MF 9500,TAFE 30,

Mounting Type
COUNTER SHAFT 0906472M03

Hardness
AS PER SPECIFICATION STANDAND

Load Capacity
Depends on the hydraulic system design. The ring must withstand fluid pressure in the pump chamber; typical small pump pressures might be tens to a few hundred bar, but this depends entirely on the system. Gram (g)

Part Name
COUNTER SHAFT 0906472M03

Sealing Type
COUNTER SHAFT 0906472M03

Product Type
COUNTER SHAFT 0906472M03

Material
Steel

Technology
Other

Part Type
Engine Part

Power Mode
Other

Technique
manufacturing method

Surface Treatment
Other

Size
32x5x6

Dimension (L*W*H)
32x5x6 Centimeter (cm)

Weight
2.9 Kilograms (kg)

Color
BLACK

COUNTER SHAFT 0906472M03 Trade Information

Minimum Order Quantity
100 Pieces

FOB Port
new Delhi

Payment Terms
Cash in Advance (CID)

Supply Ability
2 Pieces Per Day

Delivery Time
5 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The 0906472M03 counter shaft is a precision-machined transmission component designed for heavy-duty agricultural equipment, where robustness and reliability are imperative. It is typically installed in the gear train of an 8-speed gearbox assembly (constant mesh type) for tractors, serving as the intermediary shaft that carries and transmits rotational power through multiple gear clusters. The shaft is engineered from high-strength forged steel to withstand cyclical torque loads, gearmesh stresses, and the severe contamination and vibration environment found in farm duty use

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About COUNTER SHAFT 0906472M03

Description

The 0906472M03 counter shaft is a precision-machined transmission component designed for heavy-duty agricultural equipment, where robustness and reliability are imperative. It is typically installed in the gear train of an 8-speed gearbox assembly (constant mesh type) for tractors, serving as the intermediary shaft that carries and transmits rotational power through multiple gear clusters. The shaft is engineered from high-strength forged steel to withstand cyclical torque loads, gearmesh stresses, and the severe contamination and vibration environment found in farm duty use.

Its design integrates splines and journal surfaces for bearing supports, as well as multiple gear hubs and gearsets mounted along its length”these gear sets mesh with the main drive shaft and/or output gears, enabling the change of ratios. In operation, the counter shaft holds gear clusters that remain constantly meshed; the gear change is effected by sliding or shifting collars or synchronisers on the main shaft (or associated shafts). Because it ensures consistent transmission of power across a spectrum of gear ratios, the counter shaft contributes directly to smooth shifting, minimal gear noise, and long service life.

In practice this shaft finds its use in tractor models such as the Massey Ferguson "8-speed range, among other compatible transmissions. For example, parts catalogs list the 0906 472 M03 (or similar 906472 variants) as the "Assembly Counter Shaft (Includes Items 43 & 44) for the MF 5245 DI model™s dual-clutch transmission.

Given its critical role, the counter shaft must be dimensionally precise, properly heat-treated for durability (e.g., carburised or induction-hardened journals), and balanced to minimise vibration. Regular inspection for wear on splines and gear bores, checking for journal roundness and run-out, and ensuring that the associated bearings are in good condition are all important to maintain optimal transmission performance.
